Y-ZHM- Pnuematic Rod Seal-Wiper

Y-ZHM Pnuematic Rod Seal-Wiper

NBR		-20~100℃	High abrasion resistance and high temperature resistance
Compound rubber		-20~120℃	If you have any other requirements(temperature,speed etc.),
FKM		-20~200℃	please contact us.
Cold Weather Curability		-60~-30℃	We can recommend you the most proer material and constructment.
Series Q-ZHM Combined sealing ring is suitable for cylinder piston, dust
prevention and sealing.
Work pressure:≤1Mpa
Work medium:compressed air			单位：mm

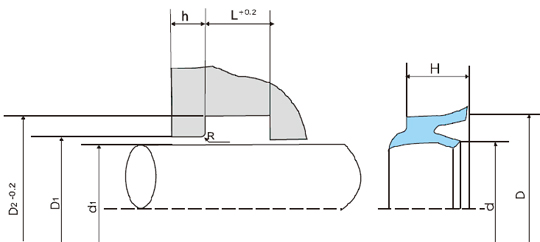

No.	d	D	H	Installation size
No.	d	D	H	d1	D1	D2	L	h≥	R
Y-ZHM-12	12	18	7	12	15	18	8	3	0.5
Y-ZHM-14	14	20		14	17	20
Y-ZHM-16	16	22		16	19	22
Y-ZHM-18	18	24		18	21	24
Y-ZHM-20	20	28	8	20	24	28	9
Y-ZHM-22	22	30		22	26	30
Y-ZHM-25	25	33		25	29	33
Y-ZHM-28	28	36		28	32	36
Y-ZHM-30	30	38		30	34	38
Y-ZHM-32	32	40		32	36	40
Y-ZHM-35	35	43		35	39	43
Y-ZHM-36	36	44		36	40	44
Y-ZHM-40	40	48		40	44	48
Y-ZHM-45	45	57	11	45	50	57	12
Y-ZHM-50	50	62		50	55	62
Y-ZHM-55	55	67		55	60	67		3.5
Y-ZHM-60	60	72		60	65	72
Y-ZHM-63	63	75		63	68	75
Y-ZHM-65	65	77		65	70	77
Y-ZHM-70	70	82		70	75.0	82
Y-ZHM-75	75	87		75	80.0	87
Y-ZHM-80	80	92		80	85.0	92
Y-ZHM-85	85	97		85	90.0	97
Y-ZHM-90	90	102		90	95.0	102
Please contact us for other specifications.
