YQGP-Pnuematic Piston Seal

YQGP-Pnuematic Piston Seal

Optional material
NBR		-20~100℃
Compound rubber		-20~120℃
FKM		-20~200℃
Cold Weather Curability		-60~-30℃
High abrasion resistance and high temperature resistance
If you have any other requirements(temperature,speed etc.),please contact us.
We can recommend you the most proer material and constructment.

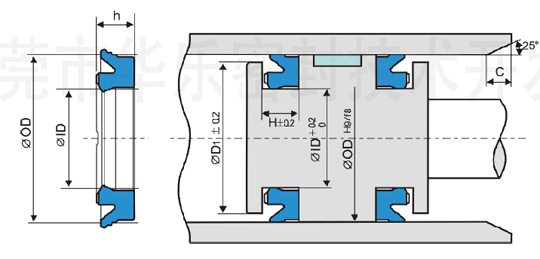

					Unit:mm
No.	OD	ID	h	H	D1
YQGP30	30	22.4	5.2	5.7	29
YQGP32	32	24	5.2	5.7	31
YQGP40	40	30	6.5	7	39
YQGP50	50	40			49
YQGP63	63	53			62
YQGP70	70	60			69
YQGP75	75	65			74
YQGP80	80	70			79
YQGP90	90	80	7	7.5	89
YQGP100	100	90	7	7.5	99
YQGP100-1	100	85	9.5	10	99
YQGP120	120	105			118.5
YQGP125	125	110			123.5
YQGP125-1	125	113	7	7.5	123.5
YQGP140	140	125	8.5	9.5	138.5
YQGP150	150	135	9.5	10	148.5
YQGP160	160	145	9.5	10	158.5
YQGP180	180	165	10	11	178.5
YQGP200	200	185	10	11	198
YQGP250	250	230	12	13	248
YQGP280	280	260			278
YQGP300	300	280			298
Please contact us for other specifications.
