Turcon Roto Variseal - PTFE Spring Energised Seals-Omniseal Spring Energised Seals Manufacture

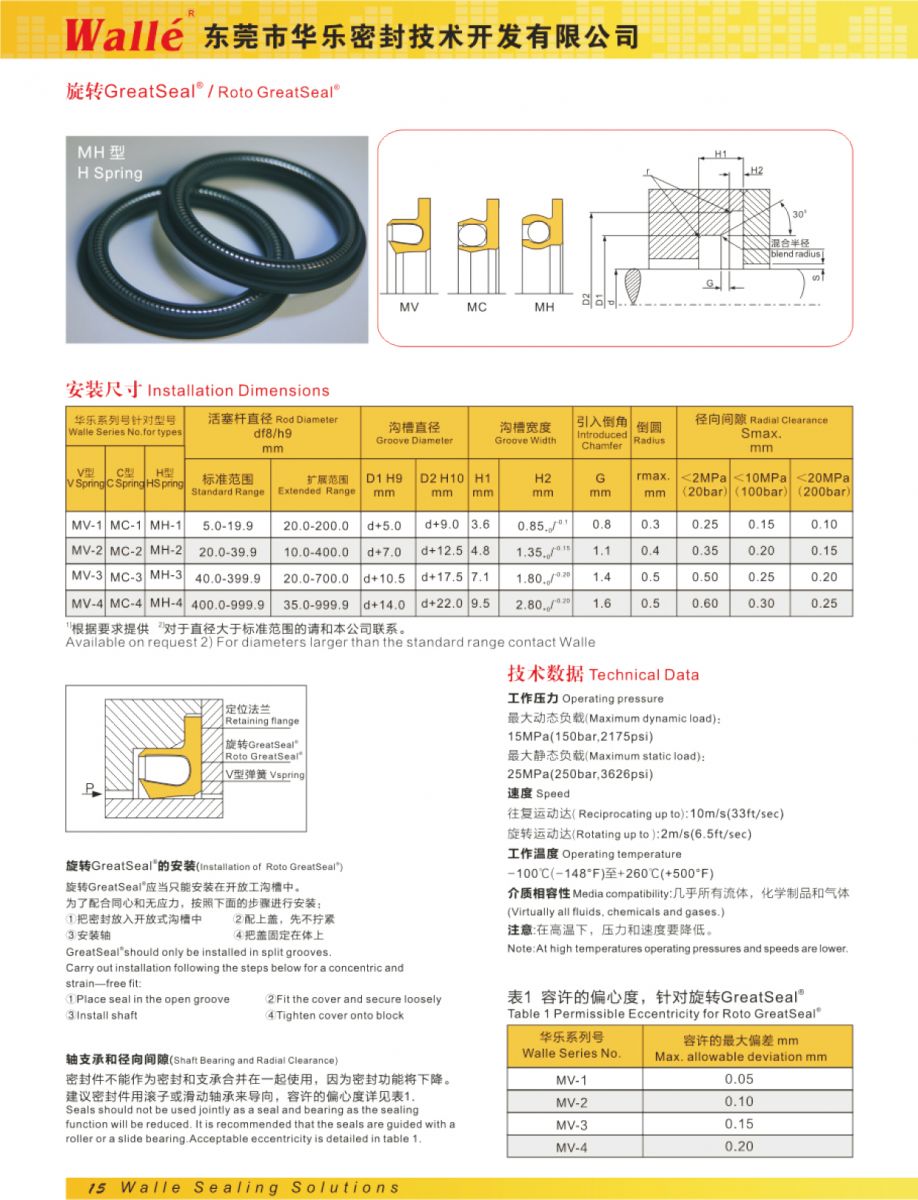

1．Name: Roto GreatSeals
Categories: Spring Energized PTFE Seals->Roto GreatSeals
Pressure(MPa):25
Temperature (C): -40/+260
Speed(m/s):2

2．Standard Materials
Seal ring: filled PTFE
Spring: stainless steel

3．Application Range
Single acting rotary seal for the axis of rotation. Widely applied to varies hydraulic systems. Besides, it is widely used in chemical, pharmaceutical and food industries due to its excellent compatibility of the seal ring and the spring.
Design and apply please refering to Trellborg’s   TVM  ,Parker’s JD series standards.

4．Characteristics
1- low friction, wear resistance, stable dimension
2- for reciprocated and rotary sealing
3- excellent wear resistance performance and dimension stability
4- can stand rapid temperature change
5- excellent scraping performance
6- will not pollute foods, medicines and medical fluids
7-  can carry out disinfection
8- unlimited storage life
